Most tuning in MaxxECU is done using 2D table, but a 3D view is also available.
Function keys
F1
|
Help!
|
F2-F12
|
User defined target
|
Shift
|
Hold to increase/decrease in larger steps.
|
Note: Function keys can manually be changed by right clicking on the settings tree, set shortcut.
Control keys (2D/3D)
+ / W
|
Increase selected values (+ Shift to increase more/CTRL to increase less).
|
- / Q
|
Decrease selected values (+ Shift to decrease more/CTRL to decrease less).
|
Up arrow
|
Move selection UP.
|
Down Arrow
|
Move selection DOWN.
|
Left arrow
|
Move selection to the LEFT.
|
Right arrow
|
Move selection to the RIGHT.
|
H
|
Horizontal interpolation.
|
V
|
Vertical interpolation.
|
CTRL + T
|
Autotune at current engine data (based on lambda target table).
|
SPACE
|
Go to current engine data cell (hold key to follow engine data).
|
SHIFT + arrow keys
|
Select multiple cells.
|
S
|
Smooth selected cells
|
ESC
|
Sets focus on the settings tree, also closes popup dialogs.
|
HOME
|
Goto first table cell in the horizontal direction.
|
END
|
Goto the last table cell in the horizontal direction.
|
SHIFT + HOME/END
|
Selects all cells to the right or left of the current selection.
|
CTRL+SHIFT+S
|
Start engine, requires activation in MTune settings.
|
Special keys
R
|
Clear all stored error codes.
|
D
|
Switch between 2D and 3D view in tables.
|
CTRL + C
|
Copy selected area in tables.
|
CTRL + V
|
Paste selected area in tables.
|
CTRL + K
|
Stop engine!
|
CTRL + Z
|
Undo last changes.
|
CTRL + R
|
Redo last undone changes.
|
Control keys (2D only)
INS
|
Insert new column/row.
|
DEL
|
Delete column/row.
|
M
|
Multiply selected cells.
|
CTRL+A
|
Select all cells in table.
|
I
|
Interpolate (area/any direction)
|
ALT + arrow keys
|
Copy a cell or area to the "arrow key direction".
|
CTRL+SPACE
|
Adds a marker at actual engine position in table.
|
A
|
Toggle target arrow.
|
Control keys (3D only)
G
|
Grow (expand) selection (does not work during "follow_mode").
|
B
|
Reduce selection (does not work during "follow_mode").
|
C
|
Clear multiple selections, and revert to last known single selection.
|
CTRL
|
Go to current engine data cell (hold key to follow) <-- use SPACE instead
|
Logger keys
P
|
Start or Pause the live-logger.
|
SHIFT+LEFT CLICK and drag
|
To make selection.
|
CTRL + Left/Right Arrow
|
Nudge (move compare file in small steps).
|
Up arrow
|
Zoom in
|
Down Arrow
|
Zoom out
|
CTRL+SPACE
|
Adds a marker at actual engine position in logger.
|
|
2D table view
An example view of a 2D table.

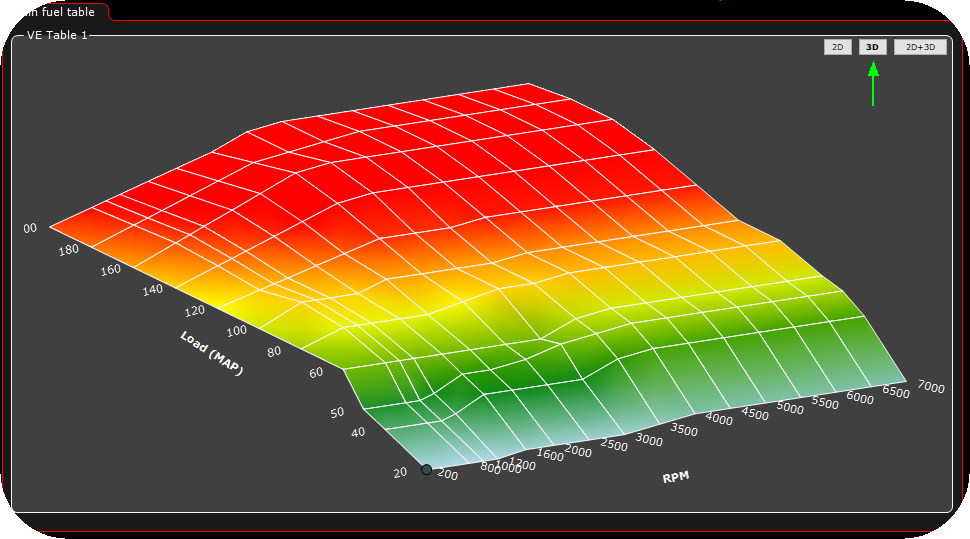

Surface 3D view
Surface 3D view.
Note: Change of axis sources, insert/remove/change rows/columns can only be made in 2D tables, see 2D table operations.
