The Mercury Marine BBC 60-1x6 trigger wheel.

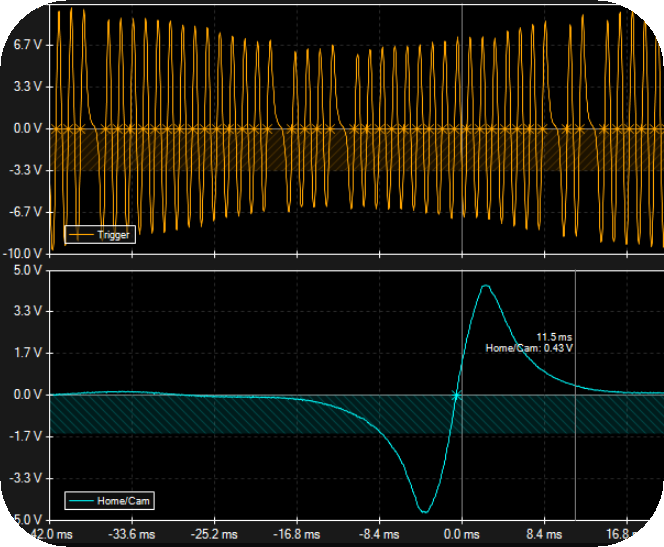

Mercury Marine BBC 60-1x6 crank trigger, with home captured from the distributor.

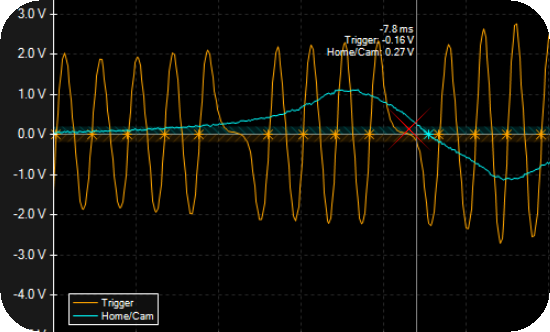

Mercury Marine BBC 60-1x6 crank trigger logger image, rising.
Note: The HOME signal comes from one of the distributor’s 6 trigger points. Make sure you select the correct tooth so it does not fall within the crank trigger’s missing-tooth window.
