The VK56VD is a 5.6-liter V8 direct-injection engine used in the Nissan Patrol Y62, Nissan Armada, and Nissan Titan (Series 4–6, model years 2018–2025).
In Nissan engine codes, “VD” = Direct Injection, while “DE” = Port Injection.
Crank trigger: 36-2-2 pattern
Cam triggers: 2-2-1-1 pattern

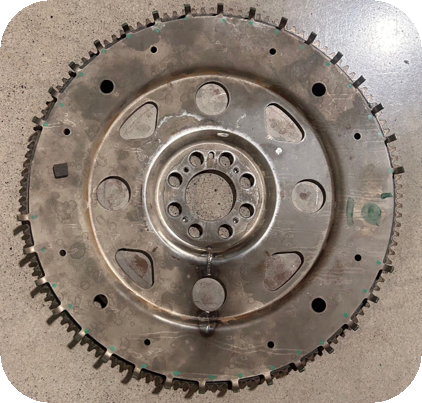

Nissan VK56VD Crank trigger wheel.

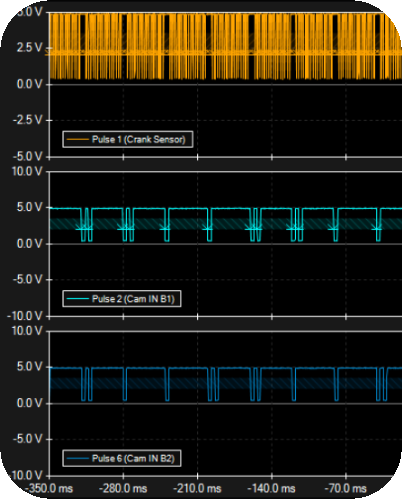

Trigger oscilloscope image from the Nissan VK56VD engine.

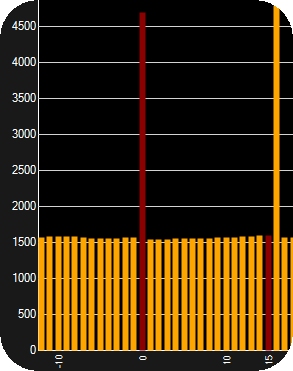

Trigger logger (crank) image from the Nissan VK56VD engine.

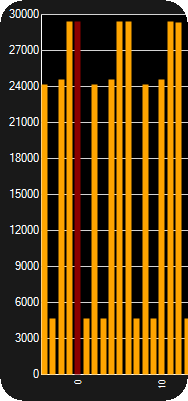

Trigger logger (CAM) image from the Nissan VK56VD engine.
