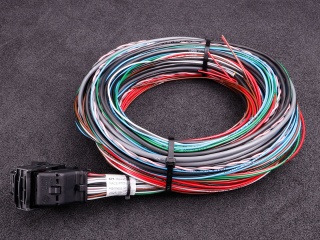

Harness 1 and has the following inputs / outputs:
- INJ 1-8 li>
- IGN 1-8 li>
- GPO 1-8 li>
- 1 WBO li>
- DIN 1-2 li>
- AIN 1-4 li>
- CLT, TPS, IAT li>
- Trigger + Home li>
- CAN 1 li>
For enhanced features MaxxECU PRO must be supplemented with more cable harnesses (see the following related articles).

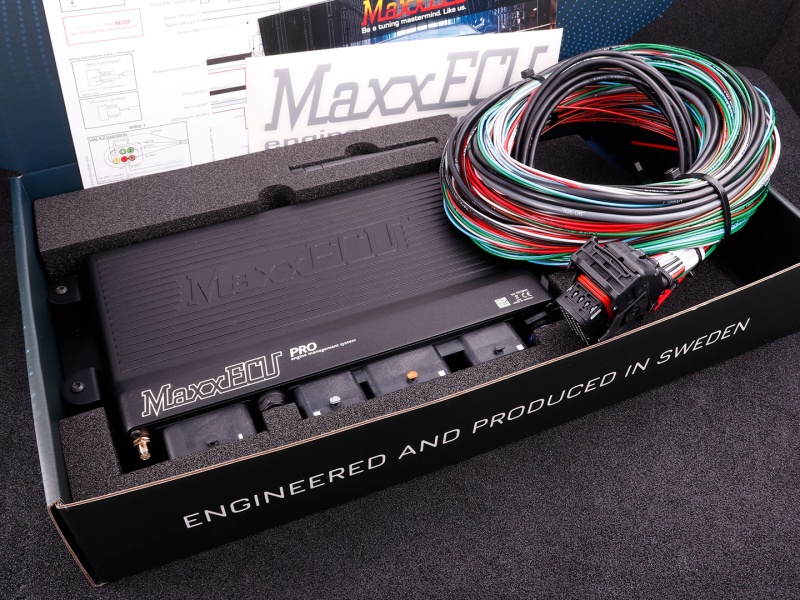

MaxxECU PRO is a product developed from the ground up to be flexible, reliable and fast. MaxxECU PRO gives the user complete engine control!
Fast Facts:
- Up to 12 cylinders sequentially.
- 16 injector outputs (low or high impedance injectors).
- 12 ignition outputs
- 12 inputs for exhaust gas temperature sensors (EGT).
- Built in MAP-sensor for boost pressure up to 3bar (400Kpa).
- Built in driver for dual WBO sensors (LSU 4.2 and 4.9 compatible)
- Dual E-Throttle(DBW) support.
- Dual knock sensor input
- 16 optional 0-5V inputs.
- 6 additional temperature inputs.
- 10 additional digital inputs (4 of them can be used with VR sensors)
- 30 auxiliary outputs (GPO), 8 of them +12v outputs
- 2 0-5V output.
- 1 5-10v output (sensor output).
- Dual CAN bus.
- Waterproof aluminum case.
- Connectors, software and settings completely backwards compatible with standard MaxxECU. Easy upgrade.
Products included
1 pcs 1469
MaxxECU PRO unit only
1 pcs 2219
MaxxECU PRO wiring diagram (printed)
