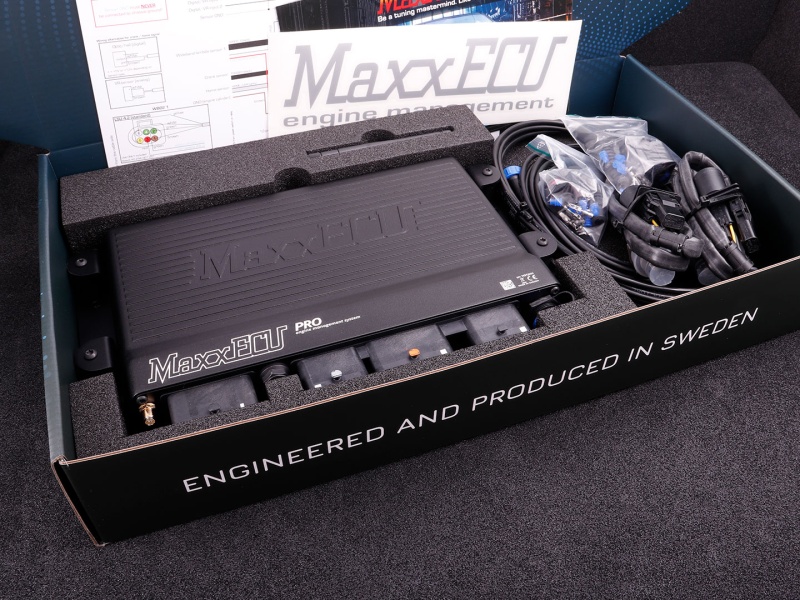

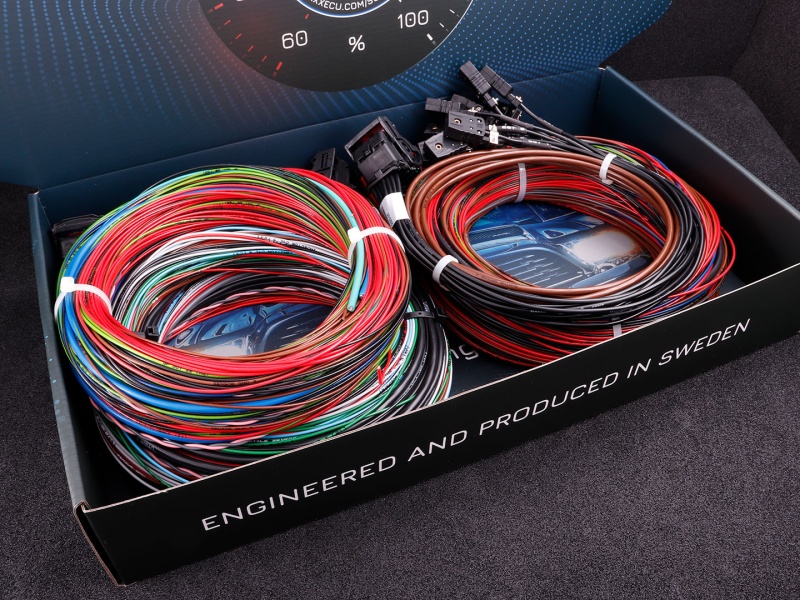

MaxxECU PRO PREMIUM (ECU, harnesses, accessories and LSU 4.2)
MaxxECU PRO PREMIUM (ECU, harnesses, accessories and LSU 4.2)
MaxxECU PRO PREMIUM (ECU, harnesses, accessories and LSU 4.2)
MaxxECU PRO PREMIUM (ECU, harnesses, accessories and LSU 4.2)
MaxxECU PRO PREMIUM (ECU, harnesses, accessories and LSU 4.2)

MaxxECU PRO PREMIUM (ECU, harnesses, accessories and LSU 4.2)

$3,260.40

in stock
QTY:
More information

MaxxECU PRO is a product developed from the ground up to be flexible, reliable and fast. MaxxECU PRO gives the user complete engine control!
Fast Facts:

  • Up to 12 cylinders sequentially.
  • 16 injector outputs (low or high impedance injectors).
  • 12 ignition outputs
  • 12 inputs for exhaust gas temperature sensors (EGT).
  • Built in MAP-sensor for boost pressure up to 3bar (400Kpa).
  • Built in driver for dual WBO sensors (LSU 4.2 and 4.9 compatible)
  • Dual E-Throttle(DBW) support.
  • Dual knock sensor input
  • 16 optional 0-5V inputs.
  • 6 additional temperature inputs.
  • 10 additional digital inputs (4 of them can be used with VR sensors)
  • 30 auxiliary outputs (GPO), 8 of them +12v outputs
  • 2 0-5V output.
  • 1 5-10v output (sensor output).
  • Dual CAN bus.
  • Waterproof aluminum case.
  • Connectors, software and settings completely backwards compatible with standard MaxxECU. Easy upgrade.
