VANOS head

This harness is built based on the non VANOS head, which means the VANOS heads CAM/HOME sensor connection is of another type and wont work.



There is two options to solve the problem if you have a VANOS head:

1.Change the CAM sensor to BMW 12141726590.

2.Cut the CAM connector in the harness, and replace with a connector that fits and also add switched +12V power supply to the sensor according to the below pinout.



Pin

VANOS CAM sensor pinout

Non-VANOS CAM sensor pinout

1

+12V

Signal

2

Signal

Sensor GND

3

Sensor GND

Shield



Note: if you have a non VANOS head, you don't have to rewire or change the sensor.





Harness support

Terminated engine harness

MaxxECU I/O

Note

+12V to injectors, ignition and solenoids

Yes


Cylinder head GND

Yes


OEM generator

Yes


OEM engine starter

Yes


Injectors (Bosch JPT connectors)

INJ


Ignition (VAG 1.8T coil-on-plug)

IGN


OEM intake temperature sensor

IAT


OEM coolant temperature sensor

CLT


OEM throttle position sensor

TPS


OEM idle valve solenoid

GPO 4, 5

Not available on MaxxECU STREET

OEM crank trigger

TRIGGER


OEM CAM trigger

HOME


VANOS solenoid

GPO 3



Boost solenoid

GPO 1

(no solenoid included)

Fuel pump control

GPO 2/or use any available output


Engine FAN control

GPO 6/or use any available output

Not available on MaxxECU STREET

Wideband LSU connector

Yes

LSU 4.2

MAP sensor hose in harness

Yes






Length

Start

End

Total length

MaxxECU CMC connector

Firewall entry/bushing

850mm

MaxxECU CMC connector

LSU connector

1600mm

MaxxECU CMC connector

IGN 1 coil connector

1950mm





Harness connectors

clip0495

Injectors - Bosch JPT 2-way





clip0496

Trigger/HOME - Bosch JPT 3-way

CLT - Bosch JPT 2-way





clip0497

IDLE solenoid = Bosch JPT 3-way

VANOS solenoid - Bosch JPT 2-way





clip0498

Lambda - Bosch LSU 4.2 6-way

Boost - Superseal 2-way





clip0499

Ignition coils - VAG 4-way (COP)





clip0500

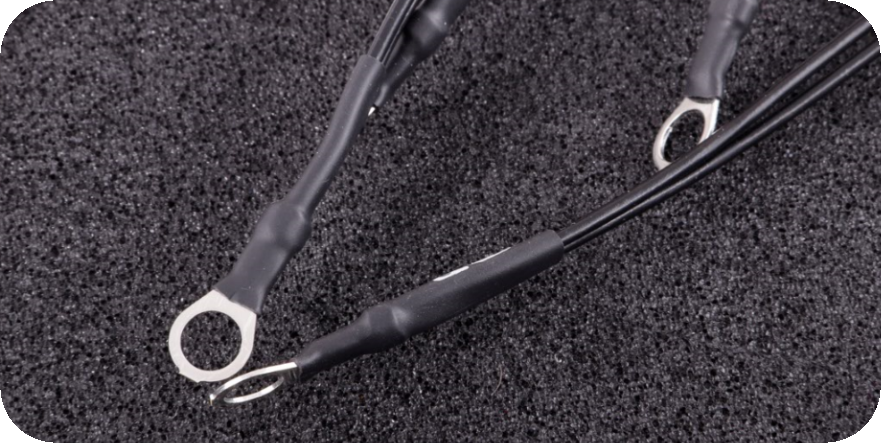

Ignition coils ground <-- DO NOT FORGET TO MOUNT IN CYLINDER HEAD





Installation

The installation of the terminated engine harness is pretty straight-forward.

1.Mount all engine connectors, alternator and starter, do not forget Engine GND.

2.Place VAG coils (not included) and connect to harness. wired for LONG coils!!!!

3.Drill a 54mm hole in the firewall for harness bushing.

4.Route harness thru firewall and mount MaxxECU. Mounting position is very dependent on engine placement and vehicle model.

5.Connect +12V with external relay (fused with 20A) to the extra 12-pin connector, pin 7 (G).

6.Connect +12V with external relay (fused with 20A) to the extra 12-pin connector, pin 1 (A).

7.Connect engine ground (brown wire) on cylinder head.

8.Connect alternator (pin 12 (M) on 12-pin connector) to +12V ignition (in serial with a charge bulb).

9.Connect starter trigger (pin 6 (F) on 12-pin connector) to start button (+12V).

10.Wire fuel pump, fan, ecu power, ground, alternator and engine starter to 12-pin connector.

11.Wire extra connections like wheel speeds, ethanol sensor etc to 16-pin connector.





12-pin connector (seen from the wire side)



12-pin_connector

Note: Pinout is from the wiring side of the extra connector, not the terminated harness.



Pin

REV1 function (unmarked harness)

REV2 function

1 (A)


+12V ignition coils power supply

2 (B)

Alternator pin 3 (battery +), cable marked 12/5

Engine ground

3 (C)

Alternator pin 1 (light), cable marked 12/4

GPO 2 (fuel pump)

4 (D)

Alternator pin 2 (ignition +), cable marked 12/3

GPO 6 (FAN)

5 (E)



6 (F)


Engine starter (+12V) - Connect to ignition key or switch

7 (G)


+12V ECU power supply

8 (H)

Engine starter (+12V) - Connect to ignition key or switch, cable marked 12/11


9 (J)

+12V ignition coils power supply, cable marked 12/10


10 (K)

+12V ECU power supply, cable marked 12/9

Sensor GND on some harnesses (see cable printings)

11 (L)

Engine ground, cable marked 12/8


12 (M)


Alternator +12V







16-pin connector (seen from the wire side)

16-pin_connector

Note: Pinout is from the wiring side of the extra connector, not the terminated harness.



Pin

REV 1

REV 1 usage

REV 2 Note

REV 2

REV 2 usage

REV 2 Note

1 (H)

+5V power supply





+5V power supply





2 (G)

INJ 8

Output

Not available on STREET

Sensor GND





3 (F)

INJ 7

Output

Not available on STREET

INJ 7

Output

Not available on STREET

4 (E)

GPO 8/TACHO

Output



GPO 8/TACHO

Output



5 (D)

GPO 7/DIN3

Output or digital input

Not available on STREET

GPO 7/DIN3

Output or digital input

Not available on STREET

6 (C)

GPO 6

Output

Not available on STREET

GPO 6

Output

Not available on STREET

7 (B)

GPO 3

Output

Parallel wired with VANOS connector

GPO 3

Output

Parallel connected with VANOS connector

8 (A)

GPO 2

Output


GPO 2

Output


9 (S)

CAN L




CAN L




10 (R)

CAN H




CAN H




11 (P)

AIN 4

0-5V analog input


AIN 4

0-5V analog input


12 (N)

AIN 3

0-5V analog input


AIN 3

0-5V analog input


13 (M)

AIN 2

temperature input


AIN 2

temperature input


14 (L)

AIN 1

temperature input


AIN 1

temperature input


15 (K)

DIN 2

Digital input


DIN 2

Digital input


16 (J)

DIN 1

Digital input


DIN 1

Digital input


Note: if your cable harness is unmarked, consider it REV 1.





Extra information

ground_is_important

Note: Ground is important...
